Mobile Counter Worktop Sizes and Layouts

Every worktop I build is 60cm deep, and comes in one of two lengths: 1.2m or 2.4m.

That's usually the first thing people want to know, so it's at the top of the page rather than buried in a form. Which one you need comes down to two things — how many people are working behind the counter, and what you're putting on top of it.

Below are both sizes, what each one holds, and the layouts I build most often. If you already know your equipment, send me the dimensions and I'll tell you which length works.

Made Around the Way You Serve

Your worktop is where most of the work happens — so the layout should make sense for your business.

Choose from one of the popular configurations below, keep things simple with a plain worktop, or tell us what equipment and containers you use and we'll design a layout around your setup.

These layouts are starting points, not your only options.

The two worktop sizes

Compare 1.2m counter 2.4m counter
Worktop 1.2m × 60cm 2.4m × 60cm
Behind it One person, full working room Two people, each with their own station
Suits Coffee, drinks, one-person service, smaller pitches, smaller vans Food prep and service, bars, two-person teams, busier pitches
Layouts available Plain, ingredient, mixed All, plus sink configurations

Both are the same depth, so they need the same floor space front to back. The only difference is how much you get along the length — which is the difference between one person working comfortably and two people working side by side.

Foldable mobile cart station bar
Sink and ingredient layout, 2.4m. Inset stainless sink with a tap on the left, six GN pans in a 3×2 arrangement on the right. Water containers and plumbing sit in the compartments underneath, so nothing is on the floor.

Start With How You'll Use It

PLAIN WORKTOP

Maximum flexibility.

A completely clear work surface for coffee machines, grinders, POS equipment, displays or your own setup.

Best for: Coffee · Retail · Events · General serving

Explore Coffee Carts →

INGREDIENT LAYOUT

Keep everything within reach.

GN / gastronorm pan openings positioned around your working area for ingredients, garnishes, toppings and preparation.

Best for: Catering · Matcha · Desserts · Cocktails · Food vendors

Explore Catering Stations →

ICE & SERVICE LAYOUT

Built around faster service.

Combine smaller ingredient pans with a larger opening for an ice pan or service container.

Best for: Cocktails · Drinks · Events · Dessert service

Explore Mobile Bars →

CUSTOM LAYOUT

Your equipment. Your workflow.

Already know what you need? Send us the dimensions of your containers or equipment and we'll discuss a worktop built around them.

Request a Custom Order →

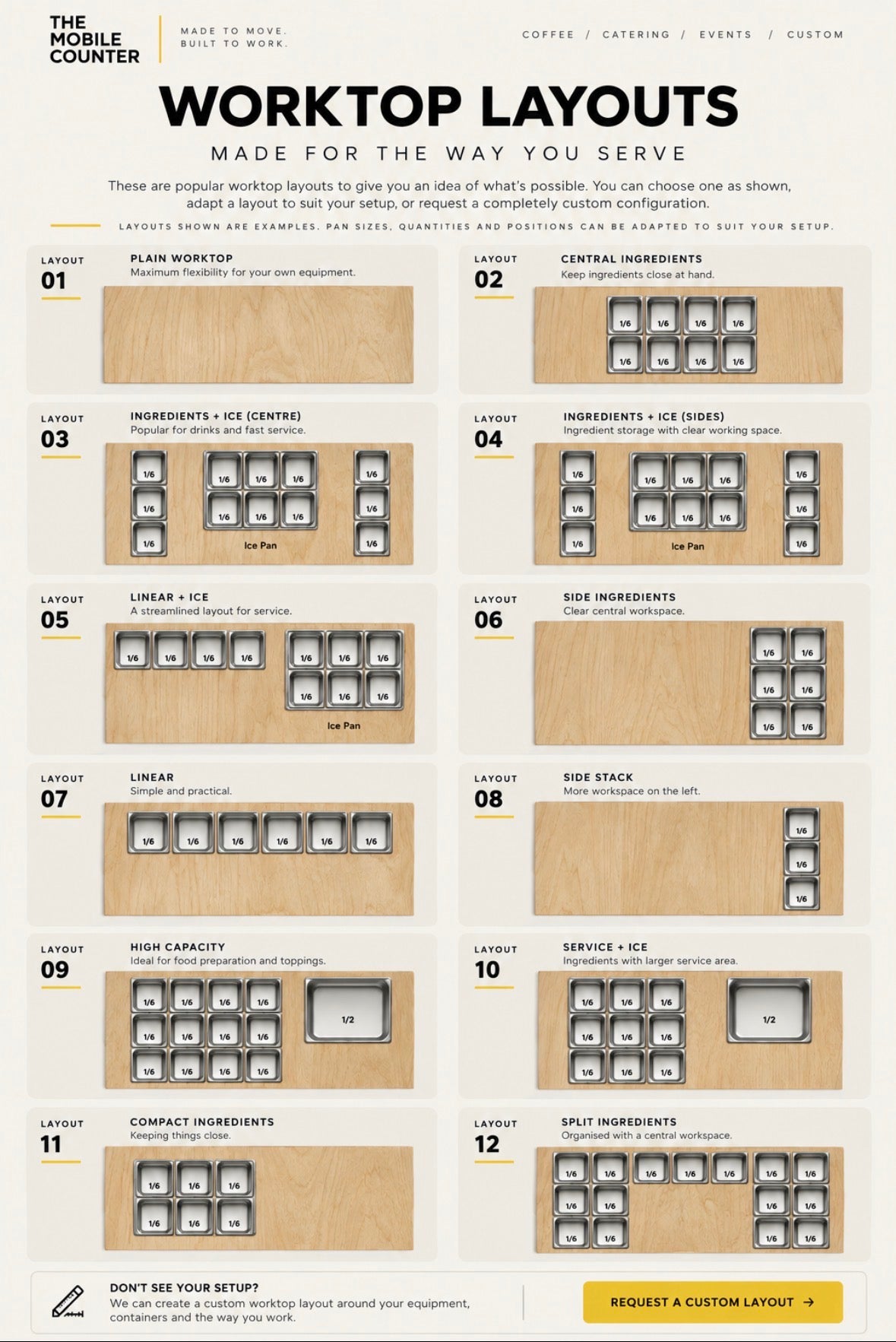

Popular Worktop Layouts

Below are examples of configurations we've put together to show what's possible. Choose one as shown, adapt it to your setup, or request something different. There are far more possible combinations than we could show here.

SIMPLE & OPEN — Options 1, 7, 8
Plenty of uninterrupted preparation or equipment space.

INGREDIENT & TOPPING — Options 2, 6, 11, 12
Multiple smaller GN pans for ingredients, garnishes and toppings.

PREP & ICE — Options 3, 4, 5
Combination layouts with ingredient pans and larger service or ice areas.

MIXED SERVICE — Options 9, 10
Different pan sizes within one worktop for more complex preparation setups.

Don't See the Layout You Need?

Good — these examples aren't here to limit what can be made.

If your business uses a particular combination of gastronorm pans, containers, equipment or preparation areas, send us the details and we'll look at how they can be arranged within your counter. You can start from one of the layouts above, or start completely from scratch.

Request a Custom Worktop →

If possible, include the dimensions or model of any equipment and containers you'd like the counter to accommodate.

Understanding GN Pan Sizes

Many layouts can be designed around standard gastronorm (GN) container sizes. Different pan sizes can be combined to organise ingredients, toppings, garnishes or other service items within the worktop.

1/1 GN — Full pan · bulk ingredients or ice

1/2 GN — Half pan · two-section splits

1/3 GN — Third pan · garnishes, toppings

1/4 GN — Quarter pan · smaller portions

1/6 GN — Sixth pan · sauces, extras

Already own your pans? Include their exact dimensions when requesting a custom layout so compatibility can be confirmed before manufacture.

What Can We Design Around?

  • GN Pans — Ingredients, toppings and garnishes
  • Ice Pans — Drinks and cocktail service
  • Coffee Equipment — Machines, grinders and accessories
  • Sinks — Washing and water setups
  • Umbrellas / Parasols — Worktop openings where required
  • Your Equipment — Tell us what needs to fit

Have something else in mind? Request a Custom Order →
